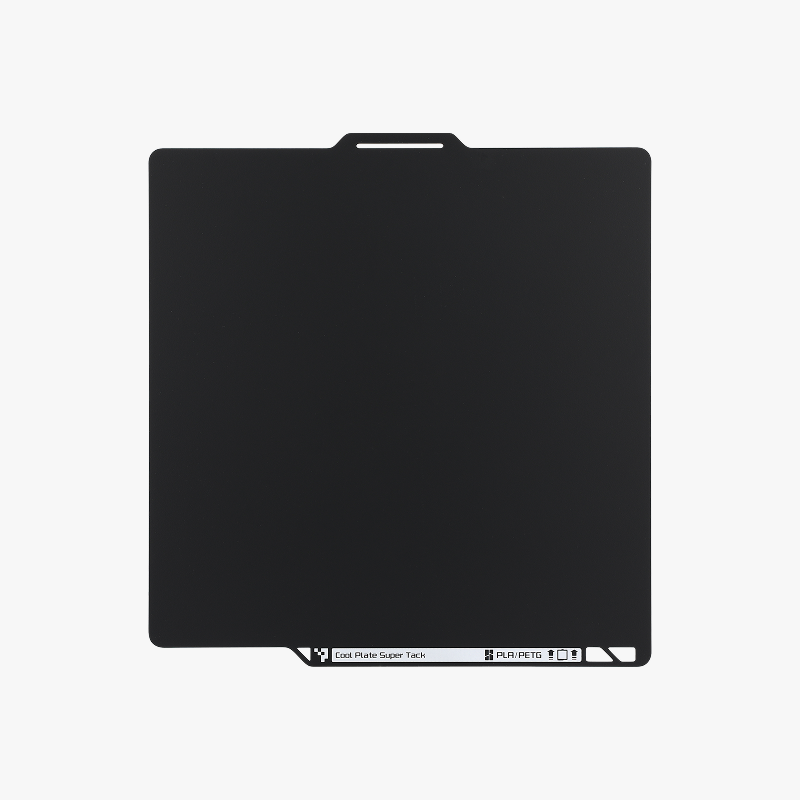

Bambu Cool Plate SuperTack Pro

SKU: FAP032

¥5,278 円

税込価格

Save
Code:
Copy
まとめ買い特典・消耗品
まとめ買いでさらにお得
消耗品 2件10%OFF | 3件以上15%OFF
※請求書でのご購入は対象外です
製品特徴
  • 接着の問題を軽減
  • 大型モデル印刷時の反りを軽減
  • 滑らかで自然な仕上がり
  • 消耗した表面でも問題なくプリント可能

【特別なご案内】

X1モデルのQRコード認識アルゴリズムの最適化作業中のため、ビルドプレート位置検出の無効化を推奨いたします。

※ 設定方法は以下の通りです:

コントロール → 印刷オプション → 「ビルドプレート位置検出を有効にする」のチェックを外す。

Compatibility:
Description:
Quantity:
¥5,278 円


  • 日本国内倉庫から2営業日以内出荷(配送規約はこちら
  • 14日間の返品・返金サービス(保証規約はこちら
  • 安心保証期間(保証規約はこちら
  • 充実のサポート体制




What Makes it Pro?



图片加载失败文案 图片加载失败文案

25% Longer Lifespan

10% Lower Operating Temperature

Better Scratch Resistance


Say Goodbye to Print Failures

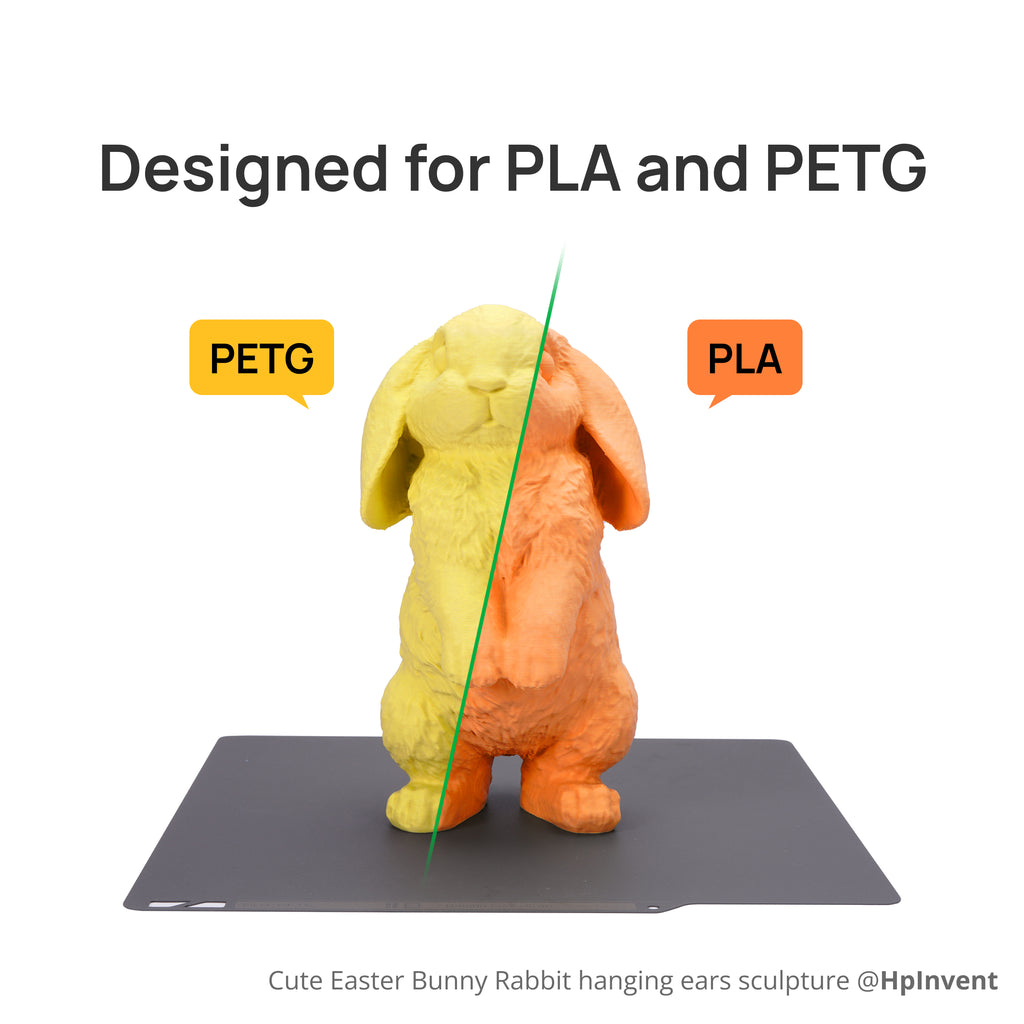

SuperTack Pro coating provides ultra-strong adhesion to PLA and PETG filaments, even at lower heatbed temperatures. It enhances printing success by eliminating adhesion issues, reduces warping when printing large objects and works well with bad shape surface.

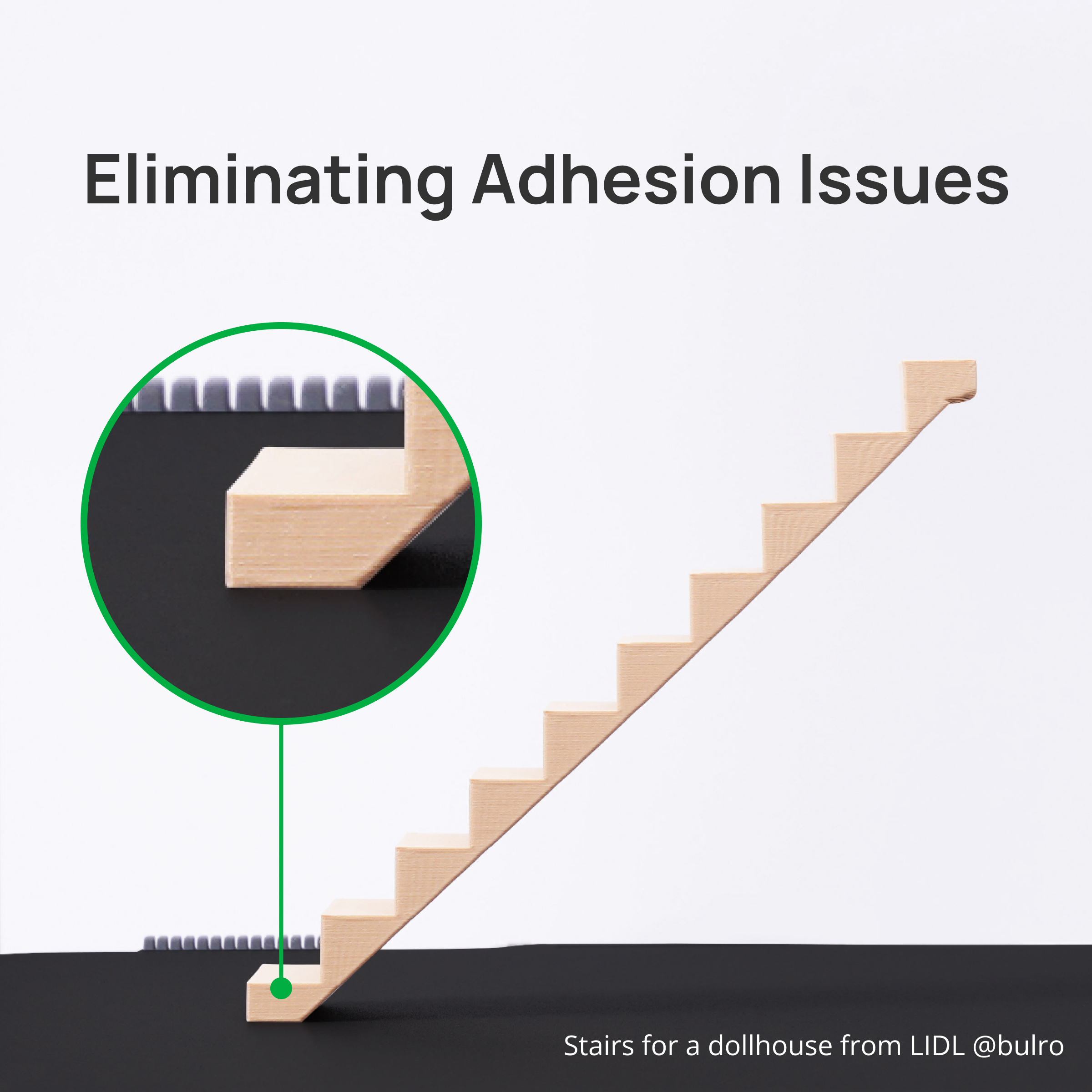

Eliminating Adhesion Issues



silk filament silk filament

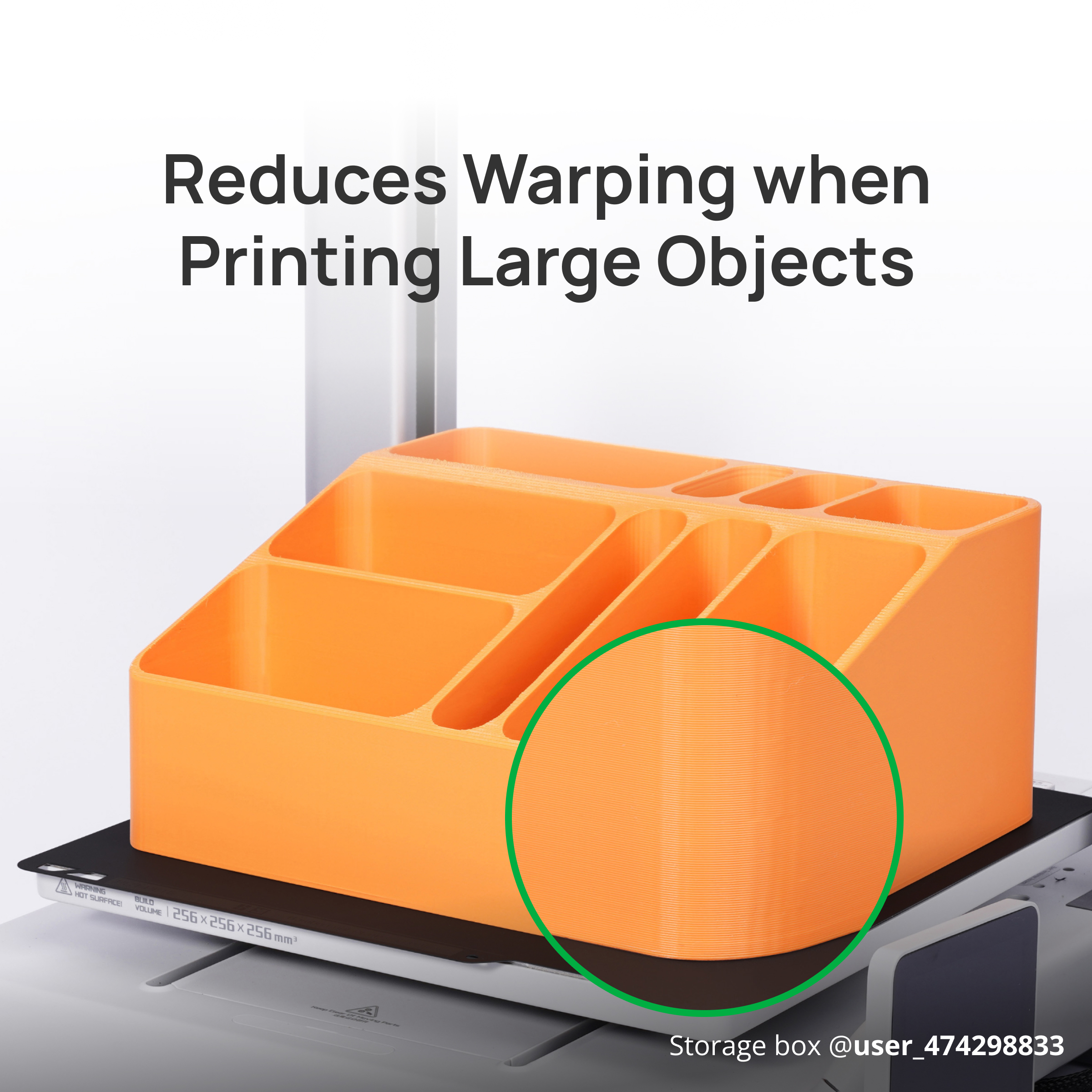

Reduces Warping when Printing Large Objects



图片加载失败文案 图片加载失败文案

The Surface is in Bad Shape? No Problem!

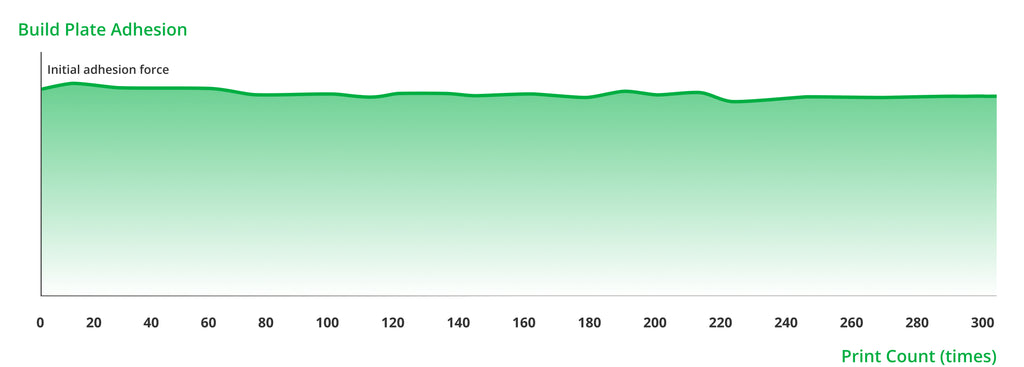

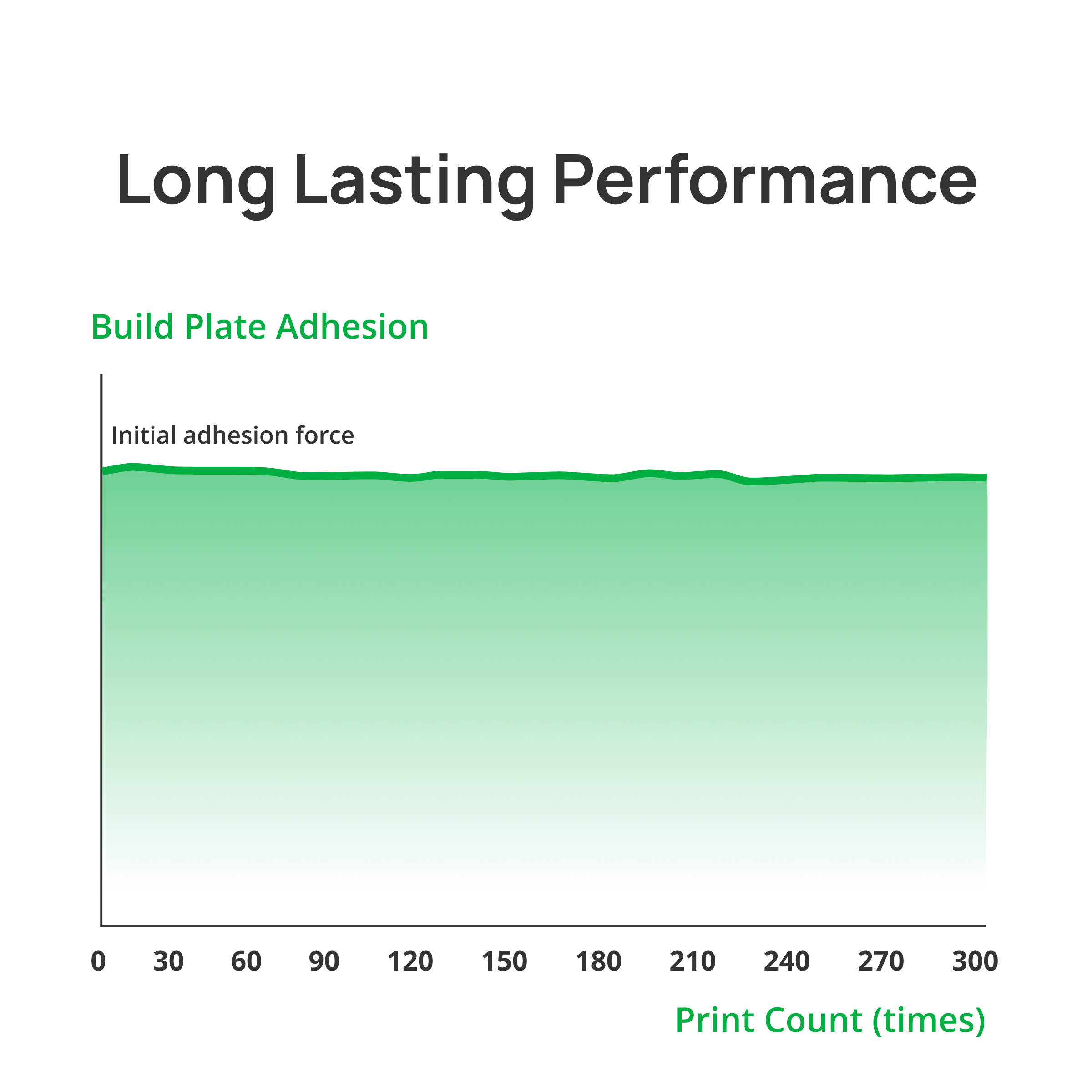

Long Lasting Performance

The SuperTack Pro coating is durable, retaining its sticky properties even after extensive use. This results in a longer lifespan for the printing plate, reducing printing costs (less than 15% adhesion loss after 300 prints) and lowering carbon emissions.

图片加载失败文案 图片加载失败文案
*The test data was produced using PLA Basic filament and completed on the A1 3D Printer.

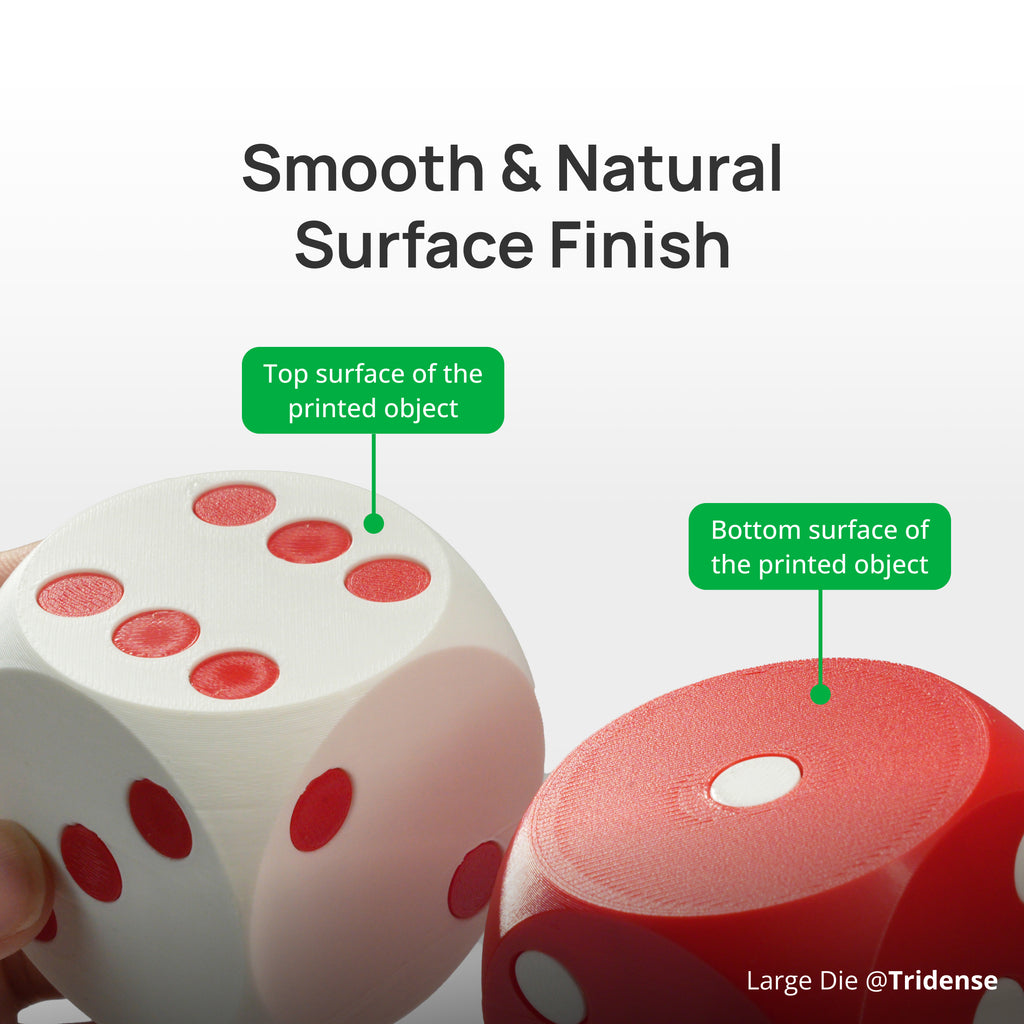

Smooth & Natural Surface Finish

The SuperTack Pro coating can impart a smooth and matte texture to the bottom surface of the printed object, better blend-in with other surfaces.

图片加载失败文案 图片加载失败文案

Energy Saving

The SuperTack Pro coating requires only an extremely low heatbed temperature to ensure that printed objects adhere securely. This means you can save a significant amount of energy during heating, leading to lower power bills and, more importantly, helping to protect our planet.

图片加载失败文案 图片加载失败文案


Comparison of Heatbed Temperatures

Materials Heatbed temperature with SuperTack Heatbed temperature with SuperTack Pro
PLA 45℃ 40℃
PETG 70℃ 60℃

How to remove prints from SuperTack Pro


(The instruction below shows you how to remove the prints without damaging the coating)

Use the scraper included with your printer to gently lift the print, then pry it off carefully. If the print is sticking too tightly, heat the plate on the heatbed to 50°C to assist with removal.


Considerations

  • Use the scraper included with your printer to gently lift the print, then pry it off carefully. If the print is sticking too tightly, heat the plate on the heatbed to 50°C to assist with removal. The surface is soft. Be careful when using a scraper to remove printed parts.
  • Because the Vortek hotend rack occupies additional space, the H2C print bed is slightly smaller than the H2D. Therefore, The H2C and H2D build plates differ in size. Please ensure you select the correct model when purchasing.
  • Do NOT print with TPU filament, as it will damage the build plate.
  • Increasing heatbed temperature enhances adhesion. Users need to adjust the temperature of the heatbed based on their specific requirements in order to achieve the most suitable level of adhesion.
  • For X1 series, P1 series, and A1 printers, before auto-leveling, it is necessary to repeatedly rub the nozzle in the special wiping area of the build plate to completely remove any residual material at the tip of the nozzle. The coating in the special-designed wiping area will gradually become worn over time. This is normal and does not affect print quality or nozzle lifetime, so there is no need to worry about any quality issues.
  • Bambu Cool Plate SuperTack Pro is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
  • SuperTack Pro provides good adhesion without adhesive or frequent cleaning. You can clean the surface with water and dish soap if heavy dirt appears. Do NOT use organic solvents (especially acetone) to clean the build plate, as it will damage the SuperTack Pro surface.
  • Bambu PLA Silk+ is supported on the Cool Plate SuperTack Pro thanks to its improved layer adhesion. But other PLA Silk material exhibits strong adhesion on the SuperTack Pro build plate, which may damage printed models. Therefore, we do not recommend printing other PLA Silk material on the SuperTack Pro except Bambu PLA Silk+. For users printing with third-party PLA Silk materials, please select the Generic PLA Silk preset in Bambu Studio and evaluate material compatibility based on the specific conditions.



Installation Steps for X1 Series/P1 Series/A1

Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

Step 2: Lower the plate and secure to the magnetic platform Step 2: Lower the plate and secure to the magnetic platform

Step 2: Lower the plate and secure to the magnetic platform

Installation Steps for H2 Series

Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

Step 2: Lower the plate and secure to the magnetic platform Step 2: Lower the plate and secure to the magnetic platform

Step 2: Lower the plate and secure to the magnetic platform

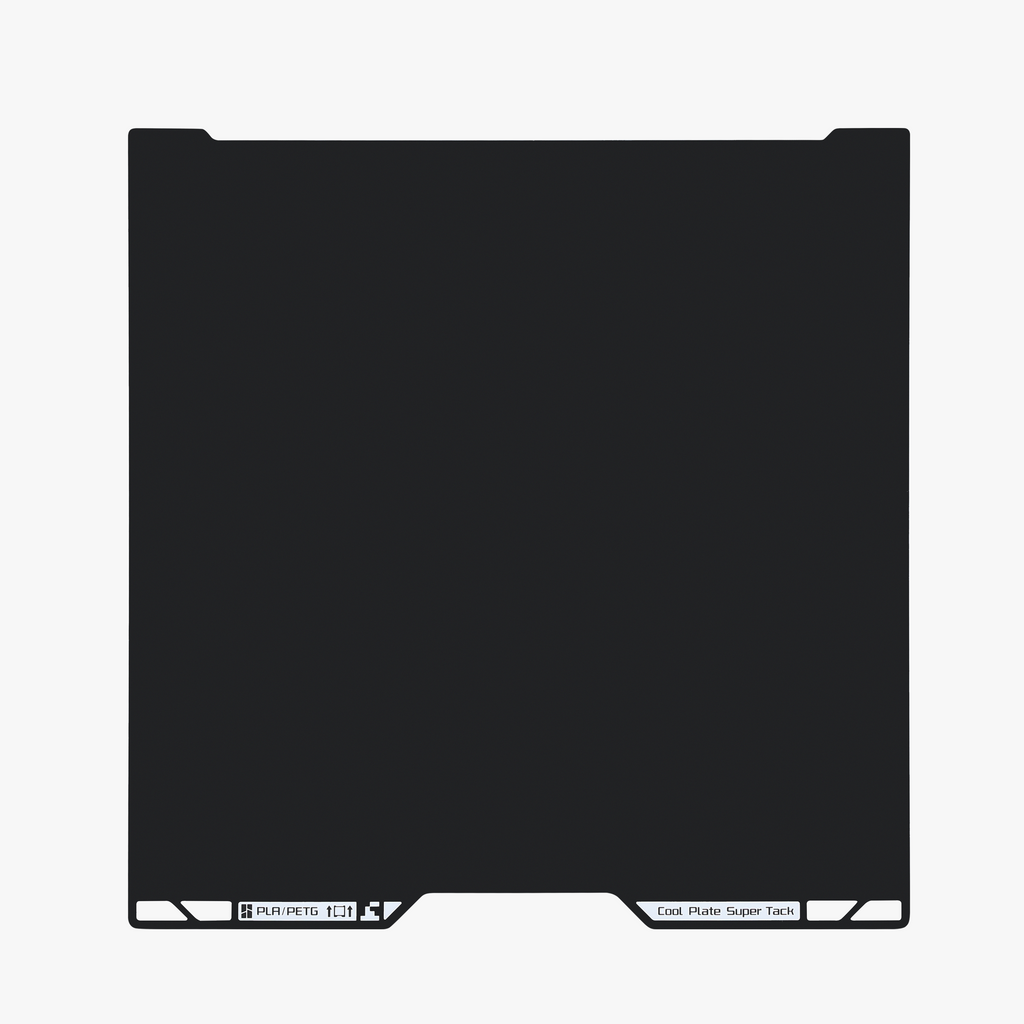

Product Specifications

Material Specially Designed Coating
Spring Steel Plate
Thickness Coating - 0.05mm
Steel Plate - 0.4mm
Surface Temperature Resistance Up to 120℃
Usable Print Size X1C/P1P/P1S/A1/P2S - 256*256mm
H2D/H2S - 350*320mm
H2C - 330*320mm
Packaging Size

X1C/P1P/P1S/A1/P2S - 315*295*15mm

H2D/H2S - 393mm*380mm*15mm

H2C - 393mm*380mm*15mm

Packaging Weight X1C/P1P/P1S/A1/P2S - 0.22 kg
H2D/H2S - 0.48 kg
H2C - 0.46 kg
