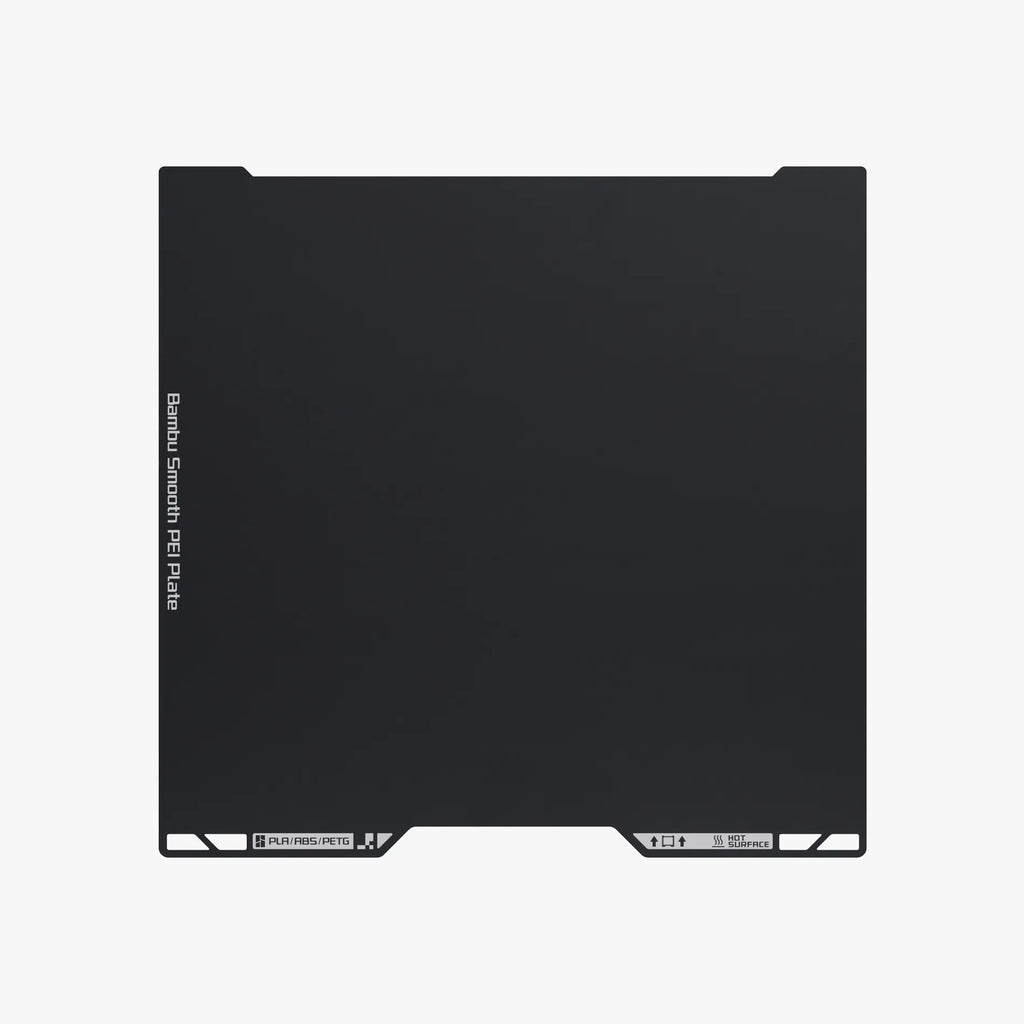

Bambu Smooth PEI Plate
Bambu Smooth PEI Plate
Bambu Smooth PEI Plate
Bambu Smooth PEI Plate
Bambu Smooth PEI Plate Bambu Smooth PEI Plate Bambu Smooth PEI Plate Bambu Smooth PEI Plate

Bambu Lab

Bambu Smooth PEI Plate

SKU: FAP010

¥6,180 円

税込価格

Save
Code:
Copy
【アクセサリまとめ買い割引】：2点以上の購入で25％OFF‼
※～2025年1月3日（金）まで
※ 請求書払いでのご購入は対象外
Quantity:
Compatibility:
¥6,180 円
お買い得オプション
※本商品とオプション対象を同時にカートに入れる必要があります。

※請求書払いでのご購入は対象外となります。


  • 日本国内倉庫から2営業日以内出荷（配送規約はこちら）
  • 14日間の返品・返金サービス（保証規約はこちら）
  • 安心保証期間（保証規約はこちら）
  • 充実のサポート体制

  • American Express
  • Apple Pay
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa
  • PayPay
  • Rabbit Line Pay
  • Rakuten Pay
  • FamilyMart
  • Lawson
  • Daily Yamazaki
  • Ministop
Bambu Smooth PEI Plate, High Z-axis precision printing, Smooth and matte surface finish Bambu Smooth PEI Plate, High Z-axis precision printing, Smooth and matte surface finish



High Z-axis precision printing

The use of a Smooth PEI Plate contributes to improved Z-axis precision during the printing process, ensuring greater accuracy and consistency in the vertical dimension. These qualities make the Smooth PEI Plate an excellent choice for printing parts that demand a high level of fit accuracy, where precise alignment and tight tolerances are crucial.
Surface Finish Surface Finish

Smooth and Matte surface finish

The use of a specially selected matte PEI sheet can impart a smooth and matte texture to the bottom surface of the printed object, enhancing its overall appearance

Compatibility with various filaments, especially for PLA

PEI enables printing not only with common materials such as PLA, TPU, PETG and PVA. Note: Please apply liquid glue or a glue stick to prevent the sheet from tearing if print filament other than PLA

Prevent warping with reliable magnetic adhesion

The Bambu Smooth PEI Plate features a 0.5mm thick spring steel plate that enhances magnetic adhesion. This helps to prevent warping and ensure optimal print quality during 3D printing. It also helps when printing larger models in materials that are prone to warping like ABS, PC, and Nylon.


Considerations

  • The Bambu Dual-Sided Smooth PEI Plate is not compatible with the Bambu Lab A1 due to the strict requirements regarding the plate thickness.
  • If bubbles appear on the bottom of the sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
  • Deposition of dust and grease on the build plate decrease adhesion. It is recommended to regularly clean the surface with detergent and water to to maintain best adhesion.
  • Do not clean the Smooth PEI with Acetone, as it will damage the PEI surface.
  • Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
  • Carefully sanding the surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
  • The Smooth PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.


    • Installation Steps

    Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

    Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

    Step 2: Lower the plate and secure to the magnetic platform Step 2: Lower the plate and secure to the magnetic platform

    Step 2: Lower the plate and secure to the magnetic platform


    Product Specification

    Material
    Dual-sided PEI Sheet+ Spring Steel
    Surface temperature resistance
    		 Up to 120℃
    Flexible stainless steel plate thickness
    0.5 mm
    Dual-sided PEI sheet thickness
    0.125 mm
    Usable print size
    256*256 mm
    Package size
    282*264*11 mm
    Package weight
    0.32 kg
    Color
    Charcoal grey




    Recommended Settings

    Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

    Materials Heatbed Temperature Glue Stick Required?
    PLA/PLA-CF/PLA-GF 45~60℃ No
    PETG/PETG-CF 60~80℃ Glue Stick/Liquid Glue
    ABS 90~100℃ Glue Stick/Liquid Glue
    ASA 90~100℃ Glue Stick/Liquid Glue
    TPU 35~45℃ Glue Stick/Liquid Glue
    PVA 45~60℃ Glue Stick/Liquid Glue
    PC/PC-CF 90~110℃ Glue Stick
    PA/PA-CF/PAHT-CF 90~110℃ Glue Stick
    PET-CF 80~100℃ Glue Stick/Liquid Glue
