Bambu Textured PEI Plate

SKU: FAP004

¥5,382 円 ¥5,980 円

税込価格

ブラックフライデーセール:2点以上購入で10%OFF!
※10/22(火)11:00~12/6(金)23:59
※ 請求書払いでのご購入は対象外です
Compatibility:
Quantity:
¥5,382 円 ¥5,980 円


  • 日本国内倉庫から2営業日以内出荷(配送規約はこちら
  • 14日間の返品・返金サービス(保証規約はこちら
  • 安心保証期間(保証規約はこちら
  • 充実のサポート体制

Things to know before use



  • Before auto-leveling, it is necessary to repeatedly rub the nozzle in the special wiping area of the build plate to completely remove any residual material at the tip of the nozzle. The coating in the special-designed wiping area will gradually become worn over time. This is normal and does not affect print quality or nozzle lifetime, so there is no need to worry about any quality issues.

  • Bambu Lab recommends only using Bambu Lab official glue on the Cool Plate, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates.
  •

    Bambu Textured PEI Plate Bambu Textured PEI Plate

    Bambu Textured PEI Plate Bambu Textured PEI Plate

    Overview

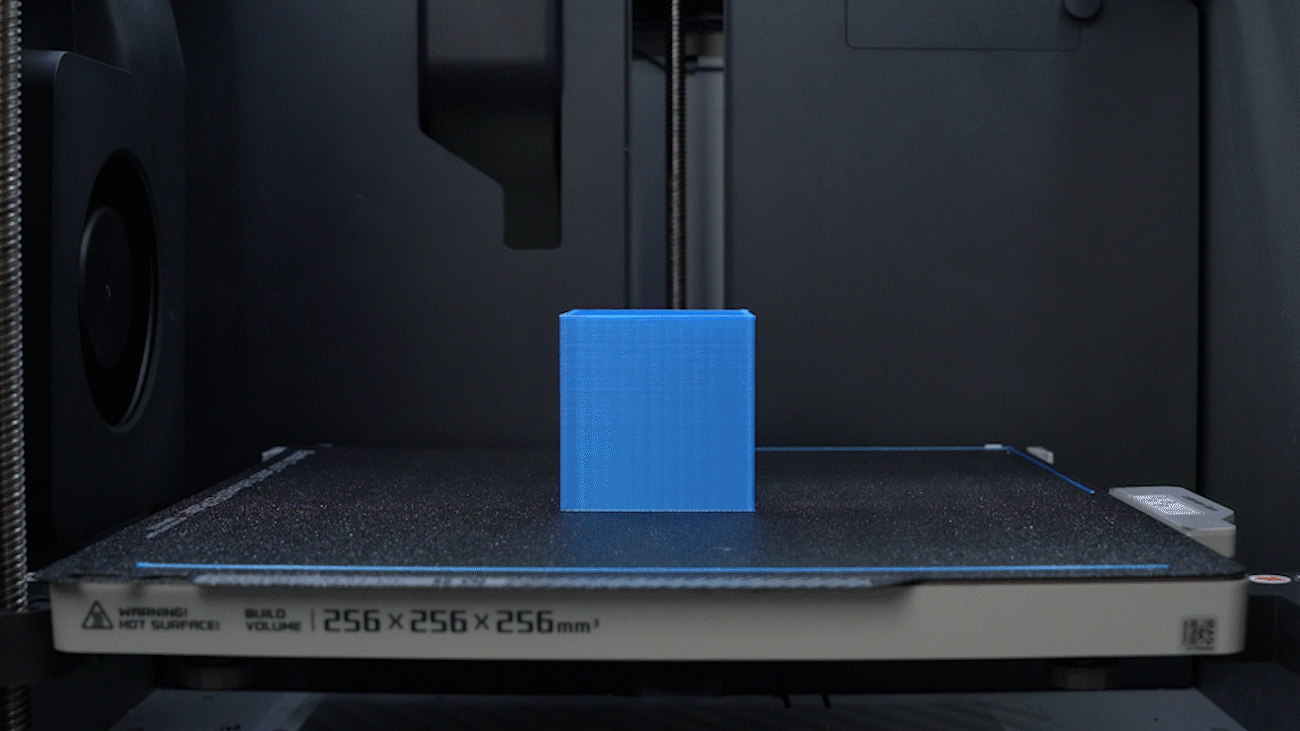

    The Bambu Dual-sided Textured PEI Plate is a flexible magnetic build plate with sprayed dual-sided PEI coating. During printing, the plate will provide excellent adhesion and easy print removal after cooling.



    Recommended Settings

    Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

    Hotbed Temperature Glue Stick Required? Upper Glass Cover Plate Removed?
    PLA/PLA-CF/PLA-GF 45~60℃ No Yes
    ABS 90~100℃ No No
    PETG 60~80℃ No No
    TPU 35~45℃ Yes Yes
    ASA 90~100℃ No No
    PVA 45~60℃ No Yes
    PC/PC-CF 90~110℃ Yes No
    PA/PA-CF/PAHT-CF 90~110℃ Yes No

    Surface Finish

    The Bambu Dual-sided Textured PEI Plate uses sprayed PEI to provide a tactile matte surface to areas of the model that touch the build plate

    Surface Finish Surface Finish

    Benefits

    Dual-sided textured PEI for increased surface lifetime

    Most of the time, no glue-stick is required for regular filaments

    Nice textured finish for the prints

    Excellent adhesion and easy print removal

    Downsides

    Glue-stick is still recommended for some filaments and printing conditions

    Cannot be used without heating the printing surface

    LIDAR will have trouble correctly reading the print surface and the calibration can be affected



    Installation Steps

    Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

    Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

    Step 2: Lower the plate and secure to the magnetic platform Step 2: Lower the plate and secure to the magnetic platform

    Step 2: Lower the plate and secure to the magnetic platform


    Product Specification

    Surface temperature resistance Up to 200℃ Usable print size 256*256 mm
    Flexible spring steel thickness 0.4 mm Texture PEI coating thickness 0.075 mm
    Package Weight 320 g Package size 290*290*4 mm

    Considerations



  • When printing filament with a heat deflection temperature below 60℃ (such as PLA, PVA, TPU) the hotbed temperature is set above 45℃ and it is recommended to open the front glass door and remove the upper glass cover plate to avoid heat creep that can cause the material to soften, leading to abnormal extrusion or clogs

  • When printing filament with a heat deflection temperature below 60℃~80℃ (such as PETG) the temperature of the hotbed is set above 60℃ and it is recommended to remove the upper glass cover plate to avoid heat creep that can cause the material to soften, leading to abnormal extrusion or clogs

  • The Automatic Calibration for Flow Rate is not recommended, as the LIDAR will have trouble correctly reading the print surface and the calibration can be affected

  • Regularly clean the print surface with dish soap and hot water to eliminate any dust or grease residue, which might cause bad adhesion

  • Do not clean the Textured PEI with Acetone, as it might damage the PEI surface

  • Always wait for a few minutes before removing printed models to allow them to cool down for easy print removal

  •
